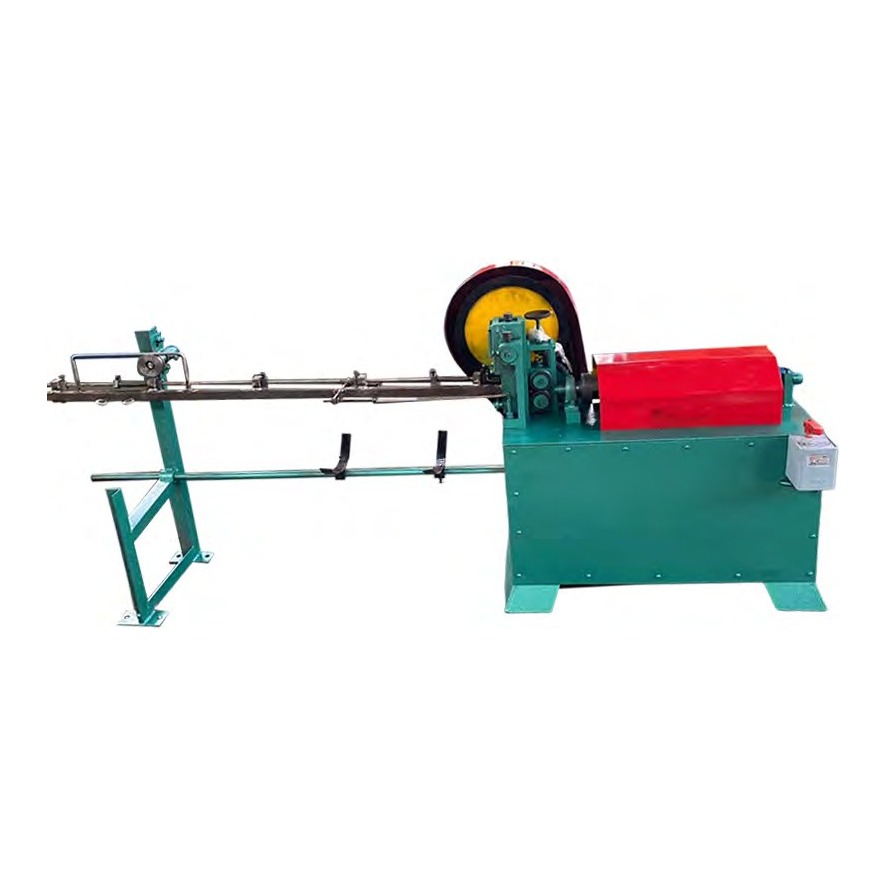

GT1-4 Steel Bar Straightening and Cutting Machine

GT1-4 Máquina enderezadora y cortadora de barras de acero

Desde $1,000

Máquina enderezadora y cortadora compacta para barra de acero de 1.2–4 mm, longitud de corte 30–2000 mm.

Categoría:

From $1,000

⚙
Personalización disponibleTodos los parámetros se pueden adaptar a sus requisitos de producción. El precio final se cotiza según sus especificaciones confirmadas.

Descripción general

Una máquina enderezadora y cortadora pequeña y asequible para barra de acero fina y alambre. La GT1-4 endereza barra de 1.2–4 mm y la corta a medida automáticamente con una precisión de ±1 mm, a 25 m/min o más rápido. Solo 130 kg — fácil de instalar y reubicar.

Características principales

  • Endereza barra de 1.2–4 mm de diámetro
  • Corte automático, longitud 30–2000 mm
  • Error de longitud de corte ±1 mm
  • Velocidad de enderezado ≥ 25 m/min
  • Peso ligero: solo 130 kg

Especificaciones técnicas

Enderezar el diámetro de las barras de acero 1.2–4 mm
Longitud de corte automática 30–2000 mm
Error de longitud de corte ±1 mm
Velocidad de enderezado ≥ 25 m/min
Motor del cilindro de enderezado Y801-4 / 0.75 kW
Potencia del motor de corte Y801-4 / 0.75 kW
Dimensiones 1700 × 350 × 850 mm
Peso 130 kg

Envíanos tu rango de diámetro de alambre, material y producción requerida — nuestros ingenieros confirmarán la especificación exacta y la cotización en un plazo de 24 horas.

Valoraciones

No hay valoraciones aún.

Sé el primero en valorar “GT1-4 Máquina enderezadora y cortadora de barras de acero”

Your email address will not be published. Required fields are marked *

Productos relacionados

Request a Quote for This Machine

Send us your wire diameter, capacity and power supply requirements — we reply with price and lead time within 24 hours.

Send Your Requirements

Tell us what you need — we reply with price, lead time and shipping cost within 24 hours.

🔒 Your details are kept confidential and never shared. We reply within 24 hours.

Frequently Asked Questions

What wire diameter range can these machines handle?

The range runs from small wire around 1.2 mm up to 25 mm rebar, depending on the model. Each machine has a stated straightening diameter range and cutting length range, both of which should be confirmed in writing before ordering.

How accurate is the cutting length?

Cutting length tolerance varies by model. Smaller machines are typically rated to about plus or minus 1 mm, while larger hub and hydraulic machines are commonly rated to within 5 mm. Straightening accuracy is usually stated separately, around 1 mm per metre.

Can it cut both round and threaded rebar?

Yes. Several models in the range are built for both round steel and threaded steel, and profile machines can also handle square, hexagonal and flat steel with the appropriate tooling. Confirm the material you need when specifying.

What is the difference between the hub type and the CNC hydraulic type?

Hub type machines use a rotating hub to straighten wire and are suited to a wide diameter range at moderate speed. CNC hydraulic machines use hydraulic cut-off with programmable length control, which suits repeat production runs and higher accuracy requirements.

How fast do they run?

Straightening speed is typically up to about 30 m/min on the larger machines, with small wire machines running faster. Actual output depends on cut length as much as line speed, since short cuts mean more cutting cycles per metre.

Can the machine be configured for our production line?

Yes. Cutting length range, motor power, voltage and control configuration can all be specified. Most machines in this range are built to order rather than supplied from stock.
