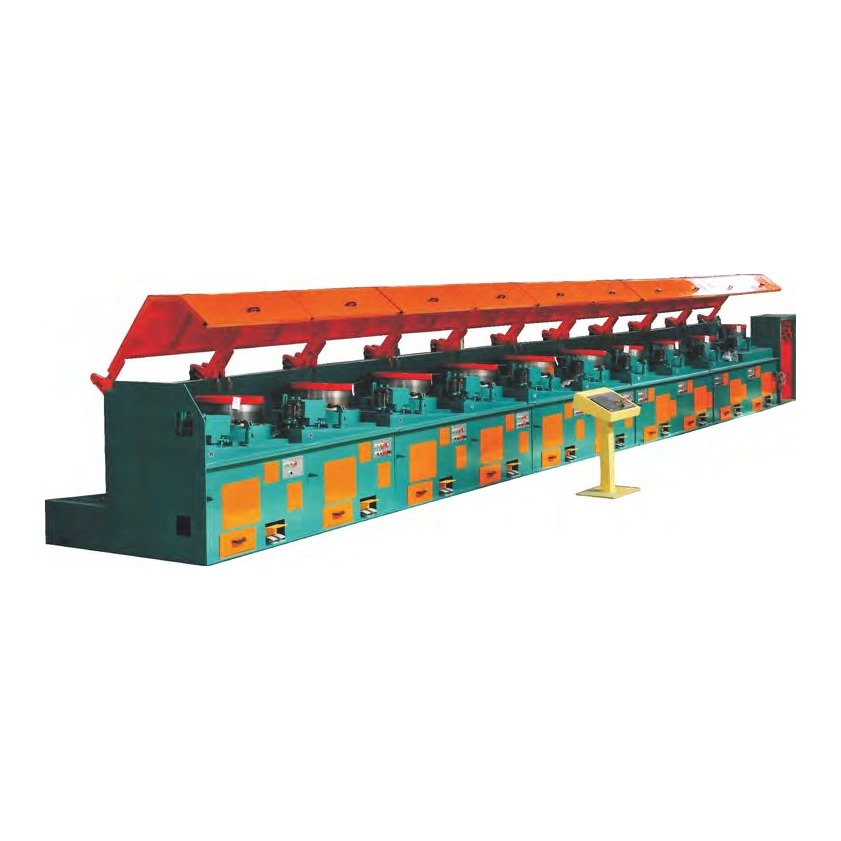

LT300–800 Straight Line Wire Drawing Machine
LT300–800 Straight Line Wire Drawing Machine

LT300–800 Straight Line Wire Drawing Machine

From $1,000

Straight-line (in-line) wire drawing machine, 9 models from 300 to 800, for steel wire, welding wire and alloy wire.

Category:

From $1,000

⚙
Customization availableAll parameters can be tailored to your production requirements. The final price is quoted according to your confirmed specifications.

Overview

The LT300–800 straight line wire drawing machine draws wire through dies arranged in a straight line, with each capstan driven independently. This gives precise tension control between passes and excellent surface quality. Available in nine sizes covering inlet diameters from 2.8 mm to 12.7 mm.

Suitable materials: high, medium and low carbon steel wire, stainless steel wire, prestressed steel wire, tyre bead wire, rubber hose steel wire, spring steel wire, curtain wire steel wire, gas shielded welding wire, submerged arc welding wire, flux cored welding wire, alloy wire and other metal wires.

Key Features

  • Nine models covering 2.8 mm to 12.7 mm inlet diameter
  • Independent motor per capstan for precise tension control
  • Max. line speed up to 25 m/s on the smallest model
  • Inlet strength up to 1250 MPa
  • 2–12 drawing dies depending on model
  • Complete with take-up kit (elephant trunk or I-wheel)

Technical Specifications

Model 300 350 400 450 500 560 600 700 800
Max. inlet dia. (mm) 2.8 3.5 4.2 5.0 5.5 6.5 8 10 12.7
Min. outlet dia. (mm) 0.5 0.6 0.75 1.0 1.2 1.1 1.6 2.2 2.6
Max. pulling speed (m/s) 25 20 20 16 15 15 12 12 8
Pulling power (kW) 7.5–18.5 11–22 11–30 15–37 22–45 22–55 30–75 45–90 55–110
No. of dies 2–11 2–11 2–11 2–12 2–12 2–12 2–12 2–12 2–12

Send us your wire diameter range, material and required output — our engineers will confirm the exact specification and quote within 24 hours.

Reviews

There are no reviews yet.

Be the first to review “LT300–800 Straight Line Wire Drawing Machine”

Your email address will not be published. Required fields are marked *

Related products

Request a Quote for This Machine

Send us your wire diameter, capacity and power supply requirements — we reply with price and lead time within 24 hours.

Send Your Requirements

Tell us what you need — we reply with price, lead time and shipping cost within 24 hours.

🔒 Your details are kept confidential and never shared. We reply within 24 hours.

Frequently Asked Questions

How do I choose the right wire drawing machine?

It comes down to inlet diameter, finished diameter, material and target output. A machine is defined by what goes in and what comes out; the number of dies has to match the total reduction you need. Send us those four details and we will confirm which series fits.

Can the machine be built for our voltage?

Yes. Machines are configured for your site supply. Tell us the voltage, phase and frequency before production starts, because a machine built for 380 V / 50 Hz will not run on 440 V / 60 Hz without changing motors and drives.

What is the lead time and how is it shipped?

Lead time is counted from the date the deposit clears and the specification is confirmed. Machines are packed for sea freight using export-grade packing. Quotations are usually issued on FOB or CIF terms, and both are stated in writing.

Are drawing dies included?

Dies are consumable and are usually quoted separately. If a quotation mentions dies without stating how many or of what grade, ask before you compare prices, because die specification changes the cost significantly.

What spare parts are available and for how long?

We supply spare and wear parts for the machines we sell, generally for at least 5 years after the model is supplied. Quote the model and machine serial number when ordering so compatibility can be confirmed.

What does the warranty cover?

12 months from arrival at the destination port, covering manufacturing defects in materials and workmanship under normal operating conditions. Consumable parts such as dies, belts, bearings and seals are excluded.
