Rotary Wire Pointing Machine

Máquina de punzonar rotativa

Desde $1,000

Máquina de punzonar rotativa — lamina una punta cónica en los extremos del alambre para enhebrarlos en la hilera.

Categoría:

From $1,000

⚙
Personalización disponibleTodos los parámetros se pueden adaptar a sus requisitos de producción. El precio final se cotiza de acuerdo con sus especificaciones confirmadas.

Descripción general

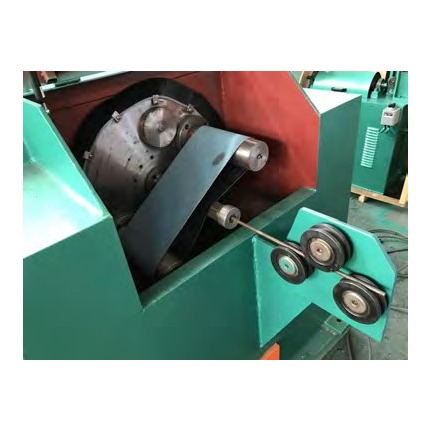

La máquina de punzonar forma un extremo cónico mediante rodillos en el extremo del alambre o la varilla para que pueda enhebrarse a través de la primera hilera de trefilado. El tipo rotativo utiliza rodillos ranurados en lugar de muelas abrasivas, lo que proporciona una punta fuerte y consistente sin pérdida de metal por polvo abrasivo.

Características principales

  • Diseño de rodillos rotativos — forma una punta sin rectificado
  • Extremos puntiagudos fuertes y consistentes
  • Sin polvo abrasivo ni desgaste de la muela
  • Admite una variedad de diámetros de alambre
  • Tiempo de ciclo rápido

Especificaciones técnicas

Tipo Máquina de punzonar rotativa
Método Conformado por rodillos de punta cónica
Aplicación Preparación del extremo del alambre para trefilado
Rango de alambre Depende del modelo — especifique el diámetro

Envíenos su rango de diámetros de alambre, material y producción requerida — nuestros ingenieros confirmarán la especificación exacta y cotizarán en 24 horas.

Valoraciones

No hay valoraciones aún.

Sé el primero en valorar “Máquina de punzonar rotativa”

Your email address will not be published. Required fields are marked *

Productos relacionados

Request a Quote for This Machine

Send us your wire diameter, capacity and power supply requirements — we reply with price and lead time within 24 hours.

Send Your Requirements

Tell us what you need — we reply with price, lead time and shipping cost within 24 hours.

🔒 Your details are kept confidential and never shared. We reply within 24 hours.

Frequently Asked Questions

Why is descaling equipment needed before drawing?

Incoming hot rolled wire carries scale, and drawing that scale through a die wears the die bore unevenly and drags broken scale into the lubricant where it scratches the wire. Descaling ahead of the drawing machine is one of the most effective ways to extend die life.

What is the difference between peeling and descaling?

Peeling removes the surface layer mechanically with blades or wheels, taking off scale and surface defects together. Descaling generally refers to removing oxide scale, which can be done mechanically, by sand belt or by other means. Peeling removes more material but leaves a cleaner surface.

What is a pointing machine for?

A pointing machine forms a tapered point on the wire end so it can be threaded through the first drawing die. Without a point, the wire cannot be started through the die. Rotary and hydraulic pointing machines cover different diameter ranges.

Why is boronization coating necessary?

The carrier coating holds lubricant to the wire surface during drawing. Dry lubricant alone does not stay on the wire at the pressure and temperature inside a die, so the coating is what keeps the lubricant film intact.

Can these machines be added to an existing line?

Yes. Descaling, pointing and coating equipment can be supplied to match an existing drawing machine. Give us the wire diameter range and line speed so the auxiliary equipment is sized correctly.

How much floor space does the equipment need?

It depends on the machine and whether it is in-line or standalone. Dimensions are stated in the specification for each unit, and we can advise on layout once we know your line arrangement.
