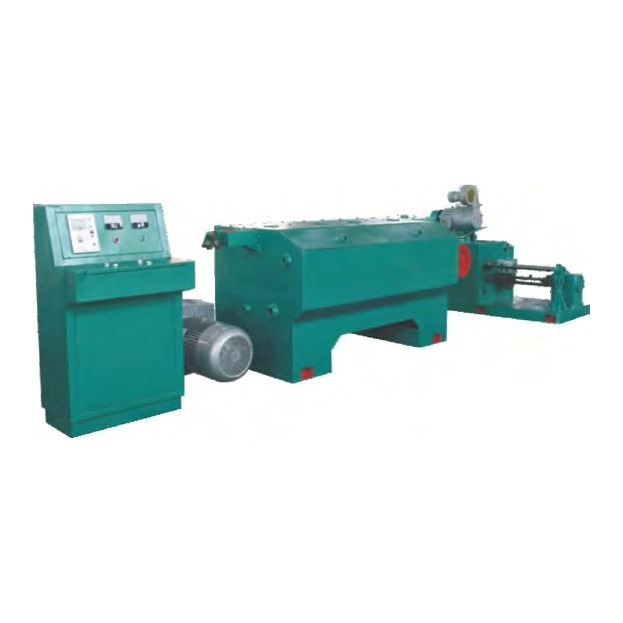

LT-17/280 & LT-17/250 Fine Wire Drawing Machine
LT-17/280 & LT-17/250 Fine Wire Drawing Machine

LT-17/280 & LT-17/250 Fine Wire Drawing Machine

From $1,000

17-die fine wire drawing machine for wire down to Φ0.45 mm, up to 600 m/min.

Category:

From $1,000

⚙
Customization availableAll parameters can be tailored to your production requirements. The final price is quoted according to your confirmed specifications.

Overview

The LT-17 series uses 17 drawing dies to achieve a total compression ratio of 92%, producing fine wire from Φ2.5 mm inlet down to Φ0.45 mm outlet. Widely used for welding wire, cable conductor wire and spring wire production.

Key Features

  • 17 drawing dies — total compression ratio 92%
  • Max. outlet fineness Φ0.45 mm
  • Drawing speed 500–600 m/min (280 model)
  • Variable frequency control
  • Compact vertical reel layout

Technical Specifications

Model LT-17/280 LT-17/250
Finished reel / cone pulley dia. Φ280 mm Φ250 mm
No. of drawing dies 17 pcs 17 pcs
Inlet diameter Φ2.5–2.0 mm Φ2.2–1.6 mm
Outlet diameter Φ0.9–0.45 mm Φ0.55–0.45 mm
Total compression ratio 92% 92%
Pass compression ratio 14% ≤ 14%
Drawing speed range 500–600 m/min ≤ 550 m/min
Matched motor power 22–30 kW 15–18.5 kW

Send us your wire diameter range, material and required output — our engineers will confirm the exact specification and quote within 24 hours.

Reviews

There are no reviews yet.

Be the first to review “LT-17/280 & LT-17/250 Fine Wire Drawing Machine”

Your email address will not be published. Required fields are marked *

Related products

Request a Quote for This Machine

Send us your wire diameter, capacity and power supply requirements — we reply with price and lead time within 24 hours.

Send Your Requirements

Tell us what you need — we reply with price, lead time and shipping cost within 24 hours.

🔒 Your details are kept confidential and never shared. We reply within 24 hours.

Frequently Asked Questions

How do I choose the right wire drawing machine?

It comes down to inlet diameter, finished diameter, material and target output. A machine is defined by what goes in and what comes out; the number of dies has to match the total reduction you need. Send us those four details and we will confirm which series fits.

Can the machine be built for our voltage?

Yes. Machines are configured for your site supply. Tell us the voltage, phase and frequency before production starts, because a machine built for 380 V / 50 Hz will not run on 440 V / 60 Hz without changing motors and drives.

What is the lead time and how is it shipped?

Lead time is counted from the date the deposit clears and the specification is confirmed. Machines are packed for sea freight using export-grade packing. Quotations are usually issued on FOB or CIF terms, and both are stated in writing.

Are drawing dies included?

Dies are consumable and are usually quoted separately. If a quotation mentions dies without stating how many or of what grade, ask before you compare prices, because die specification changes the cost significantly.

What spare parts are available and for how long?

We supply spare and wear parts for the machines we sell, generally for at least 5 years after the model is supplied. Quote the model and machine serial number when ordering so compatibility can be confirmed.

What does the warranty cover?

12 months from arrival at the destination port, covering manufacturing defects in materials and workmanship under normal operating conditions. Consumable parts such as dies, belts, bearings and seals are excluded.
